CENO ECN series are through-bore slip rings, the center hole can pass through the drive shaft, gas-liquid passage; It can also integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints. The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 980mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission, communication systems. Please contact with CENO if you have any special requirements about slip ring. ECN115-06P3-19S-01EM with large inner bore 115mm. Integrated 25 rings of current rating and 1 group 100M Ethernet signal .
ECN115-06P3-19S-01EM | Specification |
Circuits & Current | 6*15A,17*5A,2*6A,1*100M Ethernet |
Voltage | 0~220VAC/VDC |
Dielectric strength | ≥500V@50Hz (power) ≥300V@50Hz (signal) |
Isolation resistance | ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
Electrical noise | ≤30mΩ (50 rpm) |
Operating speed | 0-60 rpm |
Contact material | Precious metal |
Housing material | Aluminum alloy & stainless steel |
IP grade | IP51 |
Inner hole size | 115 mm |
Working temperature | -20°C~ +80°C |

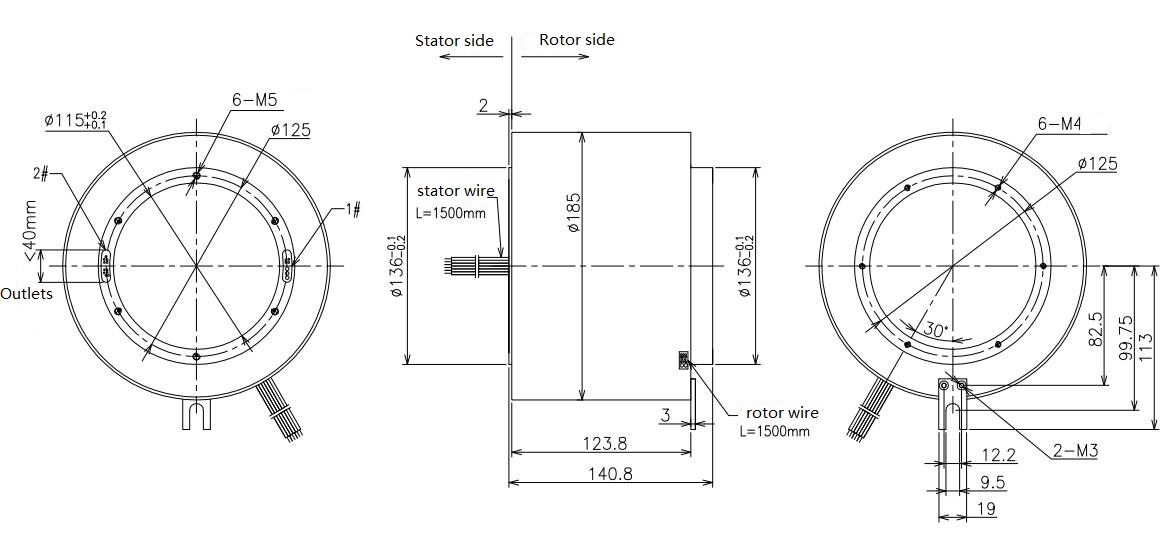

Outline drawing
