The ECN-EG series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog/digital) from stationary inlets to rotating outlets. ECN-EG series slip rings provide 100Base-T or 1000Base-T Ethernet connections with a combination of 5,10,and 15 amp power connections. Utilizing high performance gold-on-gold contacts, the ECN-EG series features low electrical noise and Ethernet cables terminated with RJ45 connectors. Need a combined fluid and electrical solution? We offer complete fluid rotary union and electrical slip ring integrated packages. welcome to contact with CENO.
ECN000-02P1-03S-01EG | Specification |
Circuits | 2*5A,1*Gigabit Ethernet,3*RS232 |
Voltage | 0~220VAC/VDC |
Electrical noise | ≤30mΩ(50rpm) |
Dielectric strength | ≥1500V@50Hz(power) ≥300V@50Hz(signal) |
Insulation resistance | ≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
Operating speed | 0-300 rpm |
Contact material | Precious metal |
Housing material | Aluminium alloy |
IP protection grade | IP54 |
Through hole size | None |

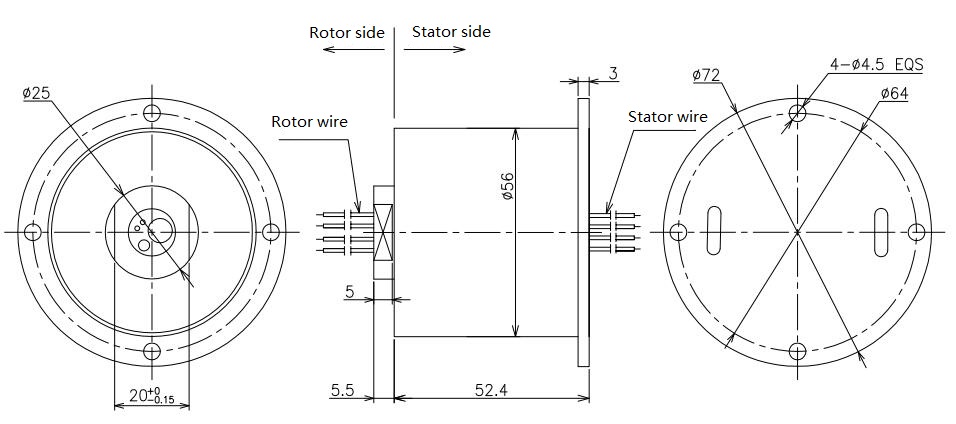

Outline drawing
