The gas-liquid rotary joint is used specially transmiting gas and liquid media, mainly including compressed air, hydrogen, nitrogen, water, oil, coolant and so on. Rotary joints adopt different sealing methods according to different transmission media, mainly including gap sealing, mechanical sealing and sealing of sealing parts. It’s can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
QCN0201 | Specification |
Channel number | 2 |
Max pressure | 10MPa |
Rotating speed | 0-200 rpm |
Outer diameter | 56mm |
Connection size | G1/8”,G2/8”,G3/8” are optional |
Rotating torque | Depends on specific pressures |
Inlet & Outlet | 2 In & 2 Out |
Contact material | Precious metal |
Housing material | Aluminum alloy |
IP grade | IP54 |
Working temperature | -20℃~+60℃ |

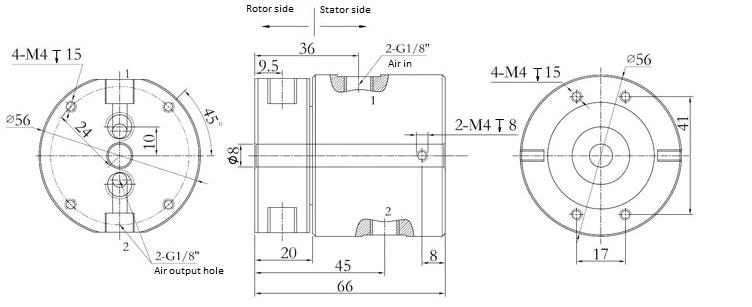

Outline drawing
