ECN000-02P-04P2-09S-02EM

Ethernet slip ring rotary joint can transmit 100M/1000M Ethernet signal, this model slip ring transmits two group of 100M Ethernet signal and power, 1000M Ethernet signal is optional. There are across flats design on rotational shaft for easy fixing rotor part.

Product Details

ECN000-02P-04P2-09S-02EM	Specification
Current	220A,410A,1PE,910 signal,2*100M Ethernet signal
Voltage	0~220VAC/VDC
Electrical noise	≤30mΩ(50rpm)
Dielectric strength	≥1000V@50Hz(power) ≥300V@50Hz(signal)
Insulation resistance	500MΩ@500VDC(power) 100MΩ@100VDC(signal)
Operating speed	0-12 rpm
Contact material	precious metals
Housing material	aluminum alloy
Operating temperature	-20~+60℃
IP protection grade	IP54

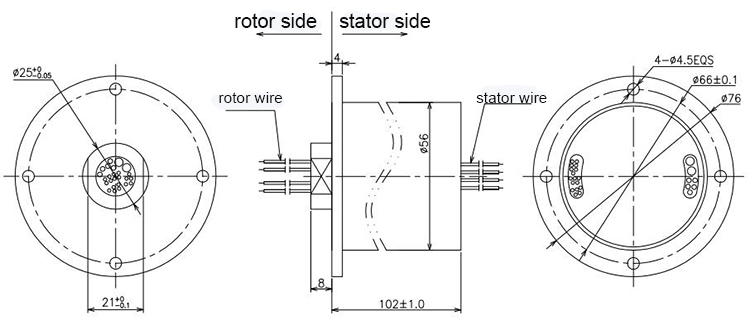

Outline drawing
