ECN000-04P2-13S-01EG

The Ethernet slip ring is designed for LAN communication and is used for the cable slip ring of 250MHz frequency signal design. There is no essential difference between a 100 Mbps Ethernet slip ring and a Gigabit Ethernet slip ring, except that the supported Ethernet transmission rate is different. They can be combined with other signals or servo signal to form a strong or weak electrical slip ring.

Product Details

ECN000-04P2-13S-01EG	Specification
Current	410A,132A(signal),1group 1000M Ethernet
Voltage	0~50VDC
Electrical noise	≤30mΩ(50rpm)
Dielectric strength	≥300V@50Hz(power) ≥100V@50Hz(signal)
Insulation resistance	300MΩ@300VDC(power) 300MΩ@100VDC(signal)
Operating speed	0-100 rpm
Contact material	precious metals
Operating temperature	-40~+65℃
IP protection grade	IP54

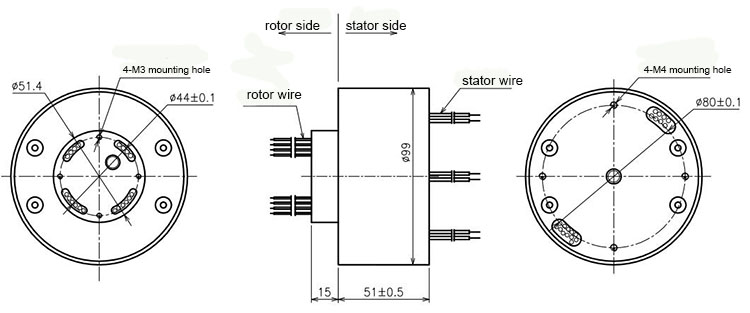

Outline drawing
