ECN025-04P-15S-02EG

This is Ethernet slip ring for automation equipment, through bore size 25.4mm, with CAT 5e cable, transmit 2 group of 1000M Ethernet and power, it is designed for Ethernet transmission, compatible with data bus protocol, USB, RS, CANBUS in a continuous rotation of 360 degrees. It can integrate signal, power and high frequency into one unit to save the installation space.

Product Details

ECN025-04P-15S-02EG	Specification
Current	45A,15signal,2 group 1000M Ethernet
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz(power) ≥500V@50Hz(signal)
Insulation resistance	500MΩ@500VDC(power) 300MΩ@100VDC(power)
Operating speed	0-300 rpm
Contact material	Precious metals
Operating temperature	-20~+60℃
Through bore size	25.4mm
IP protection grade	IP54

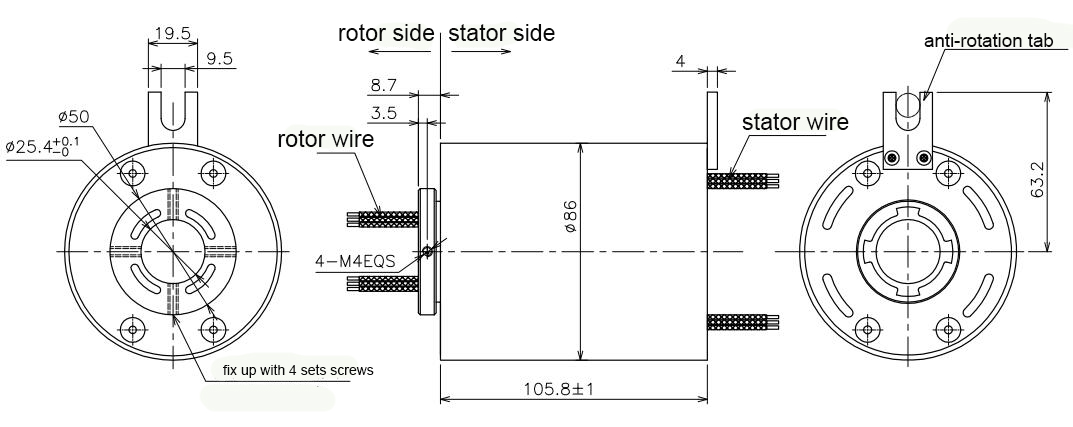

Outline drawing
