CENO has developed signal slip ring with Gigabit Ethernet, signal character base on market requirement. The Ethernet slip ring comply with EMC compatibility and meet the requirement of signal impedance matching, to make sure transmission low loss, no error code, long distance transmission. Transmission distance could up to 1000Mbps, or over this speed. It could integrate another current, signal or air rotary joint into one slip ring for different customer’s requirement.
ECN025-06P1-03EG | Specification |
| Current | 6*5A,3 group*1000M Ethernet |
| Voltage | 380VAC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz(power) ≥500V@50Hz(signal) |
| Insulation resistance | 500MΩ@500VDC(power) 300MΩ@100VDC(signal) |
| Operating speed | 0-300 rpm |
| Contact material | precious metals |
| Operating temperature | -20~+60℃ |
| Through bore size | 25.4mm |
| IP protection grade | IP54 |

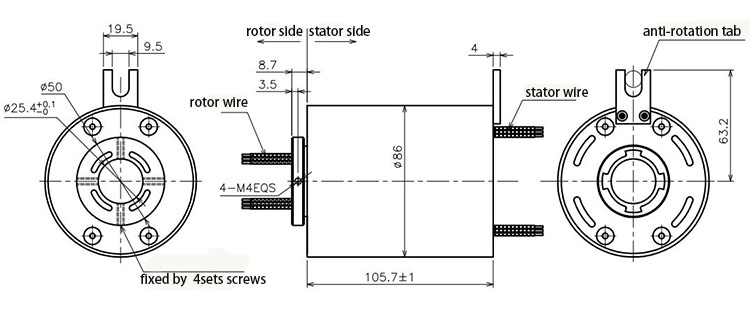

Outline drawing
