ECN025-08P2-02EG

Hollow shaft Ethernet slip rings transmit 100M/1000M Ethernet signal. Ethernet connections with a combination of 10 amp power connections, with advantages of reliable transmitting, no package loss, no cross talk, low loss, low electrical noise and Ethernet cables terminated with RJ45 connectors.

Product Details

ECN025-08P2-02EG	Specification
Current	810A, 21000M Ethernet
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz (power) ≥500V@50Hz (signal)
Insulation resistance	500MΩ@500VDC(power) 100MΩ@100VDC(signal)
Operating speed	0-300 rpm
Contact material	Precious metals
Operating temperature	-20~+60℃
Through bore size	25.4mm
IP protection grade	IP54

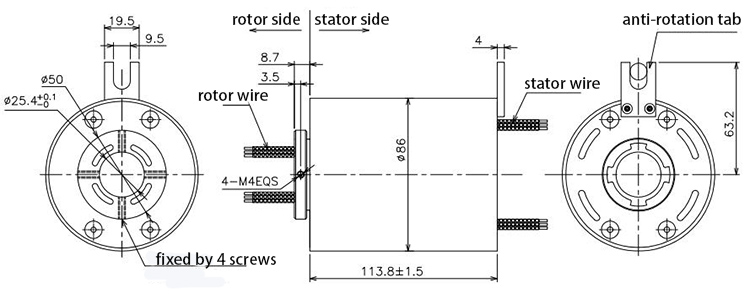

Outline drawing
