ACN-02P-01UB

USB slip ring specially designed to transmit USB1.0/USB2.0 signals with advantage of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. USB slip ring solve the problem of large capacity data signal transmission between system components rotating connection, and provides the best technical solutions.

Product Details

ACN-02P-01UB	Specification
Current	22A; 1USB2.0
Rating voltage	0-220V AC/DC
Dielectric strength	≥500VAC@50Hz(Power) ≥100VAC@50Hz(Signal)
Insulation resistance	≥100MΩ@500VDC(Power) ≥10MΩ@100VDC(Signal)
Electrical noise	≤15m Ω
Lead wire size	AWG28#;USB2.0 wire
Lead wire length	250mm
Working temperature	-20℃~+60℃
Working speed	0~10rpm
Contact material	Precious metal

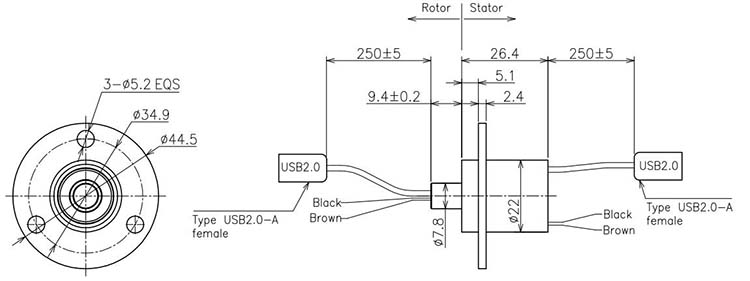

Outline drawing
