PSCN100-03S

CENO pancake slip ring is also called platter slip ring because of its outline. Extremely thin is the feature of this series slip ring. It is very welcomed by those applications which installation space is limited in height. Platter slip ring distributes the rings in radial direction to save axial space.

Product Details

PSCN100-03S	Specification
Current	3*1A
Rating voltage	0~24VAC/VDC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥500VAC@50Hz
Isolation resistance	200MΩ@500VDC
Inner diameter	Ø100.8mm
PCB	FR-4
Working speed	0~300rpm
Contact material	Gold to Gold
Working temperature	-20℃~+60℃
Working Humidity	Below 60%RH

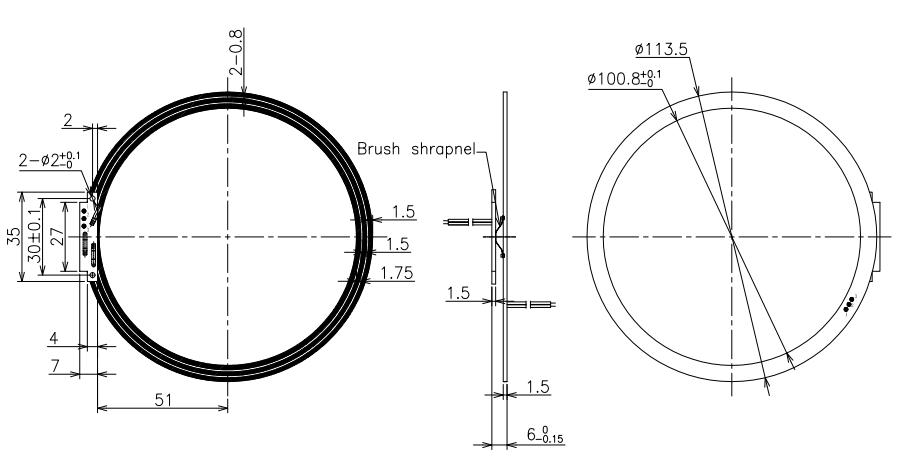

Outline drawing
