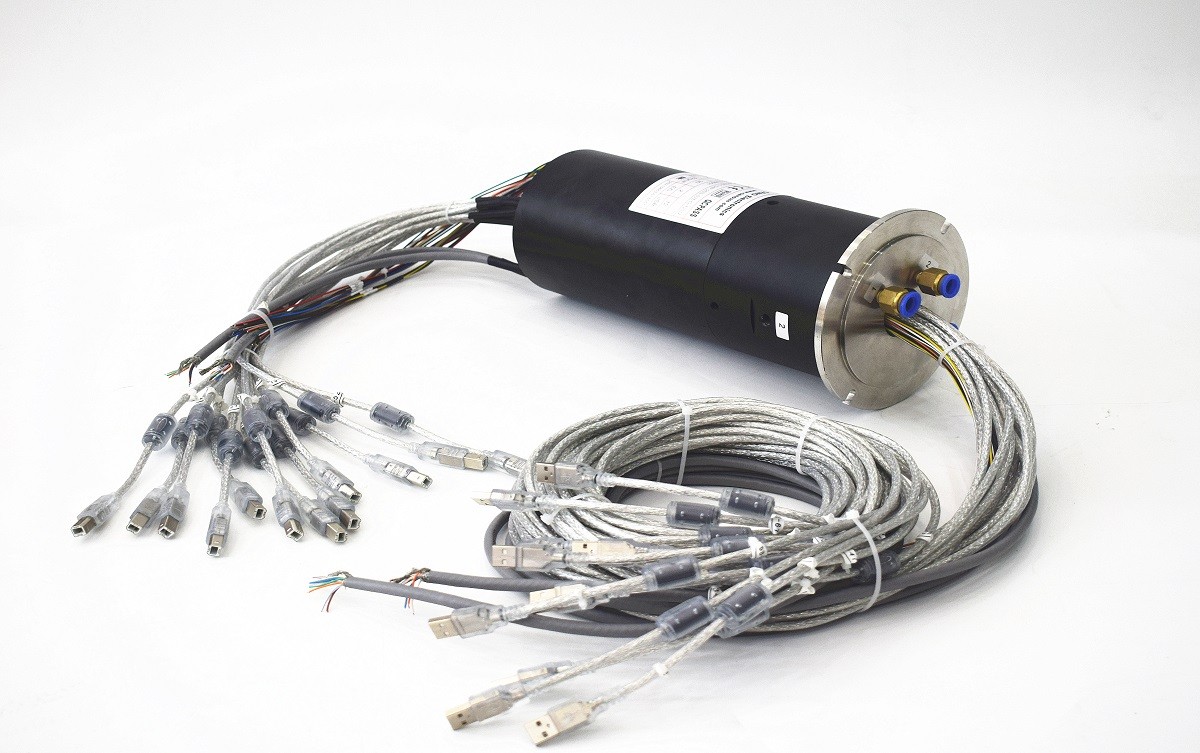

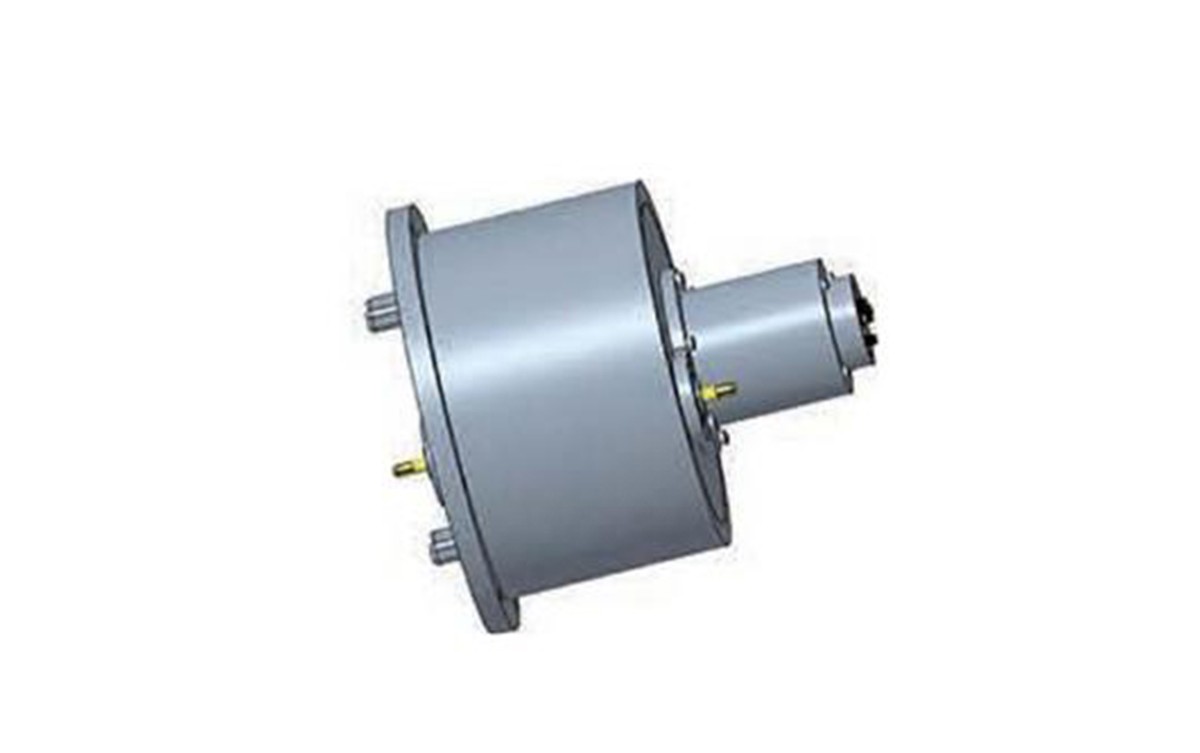

Power/signal+RF rotary joint is a non-standard CENO integrated slip ring series. It integrates current, signal and RF rotating joint together for the radar industry. Its current can reach up to serveral hundred amps. The signal type could cover all types accoridng the application need. Meanwhile the current can be up to several hundred amps in the frequency of high -frequency and integrates high frequency rotary joints, the signal type can cover all types according to the application requirement. The frequency of high-frequency joints is from DC to 50ghz, and the the channel could up to five channels. This kind of integrated slip ring gets stable performance to meets EMC requirements. It is widely used in various radar antenna systems.
Characteristic
Different current and signal type
Different RF frequence type
Various size
Well performance,Various function
Optional
Circuit Channel Number
Protection grade
Installation way
Signal type and RF frequence size
Application
High definition network
Satellite communication
Military industry
Radar antennas
| Model | ID (mm) | OD (mm) | CKT No. | Current/Signal | Voltage | Working speed rpm | Spec |
|---|---|---|---|---|---|---|---|
| ECN000-03P1-01EG-01R | 0 | 60 | 5 | 3 * 6A; 1*Ethernet; 1 * RF N-J | 0 ~ 220 VAC/VDC | 0~7 |  |
| ECN000-02P-06S-02R | 0 | 90 | 8 | 2* 25A,6*signal; 2* RF SMA | 48VAC | 0~50 |
|
| ECN000-06P1-10S-02R | 0 | 90 | 10 | 6 circuits*2A; 2*RS422 2* RF SMA | 24VAC/VDC | 0~100 | |
| ECN000-05P2-05S-04R | 0 | 105 | 12 | 4*10A, 4*1A; 4*RF | 0-440VAC/VDC | 0~60 |
|
| ECN000-04P3-06S-02EM-03R | 0 | 119 | 15 | 4*15A, 4*RS, 2*Ethernet; 3*RF 12GHz | 0~240VAC / 24VDC | 0-20 |
|
| ACN22-02P2-12S-02HD | 0 | 22 | 16 | 2*10A; 2*1A; 1*Signal; 1* Ins signal 2*RF Signal | 24VAC/VDC | 0-300 |  |
| ECN000-02P4-08P1-04S-01EG-02R | 0 | 70 | 17 | 2*20A; 2*3A; 2*2A; 4*1A; 1*RS422; 1*Ethernet; 2* RF SMA-f(50Ω) | 0-24VAC/VDC | 0~100 | |
| ACN24-1R24P1 | 0 | 24 | 25 | 24*2A; 1*RF signal | 0~240VAC/VDC | 0-80 |
|
| ECN000-26P-01R | 0 | 260 | 26 | 4*40A,10*1A,12*1A; 1* Wave guide CPR284G(EIA RS-271A) | 0~250VAC/VDC | 0-50 |
|
| ACN-24S-04RF | 0 | 24 | 28 | 24*signal; 4*RF signal | 0~110V AC/DC | 0~10 |  |
ACN24-1R30P1 | 0 | 24 | 31 | 30 * 2A; 1*RF signal | 0-240VAC/VDC | 0-80 |
|
| ACN24-1R36P1 | 0 | 24 | 37 | 36 * 2A; 1*RF signal | 0-240VAC/VDC | 0~80 |  |
| ACN-56A-40P-02RF | 0 | 25 | 42 | 4*6A; 36*2A; 2*RF Signal | 0-240VAC/VDC | 0-50 |  |
| ACN-56A-04P1-40P-02RF | 0 | 25 | 46 | 4*6A, 40*2A; 2*RF signal | 0~240VAC/VDC | 0-50 |
|
