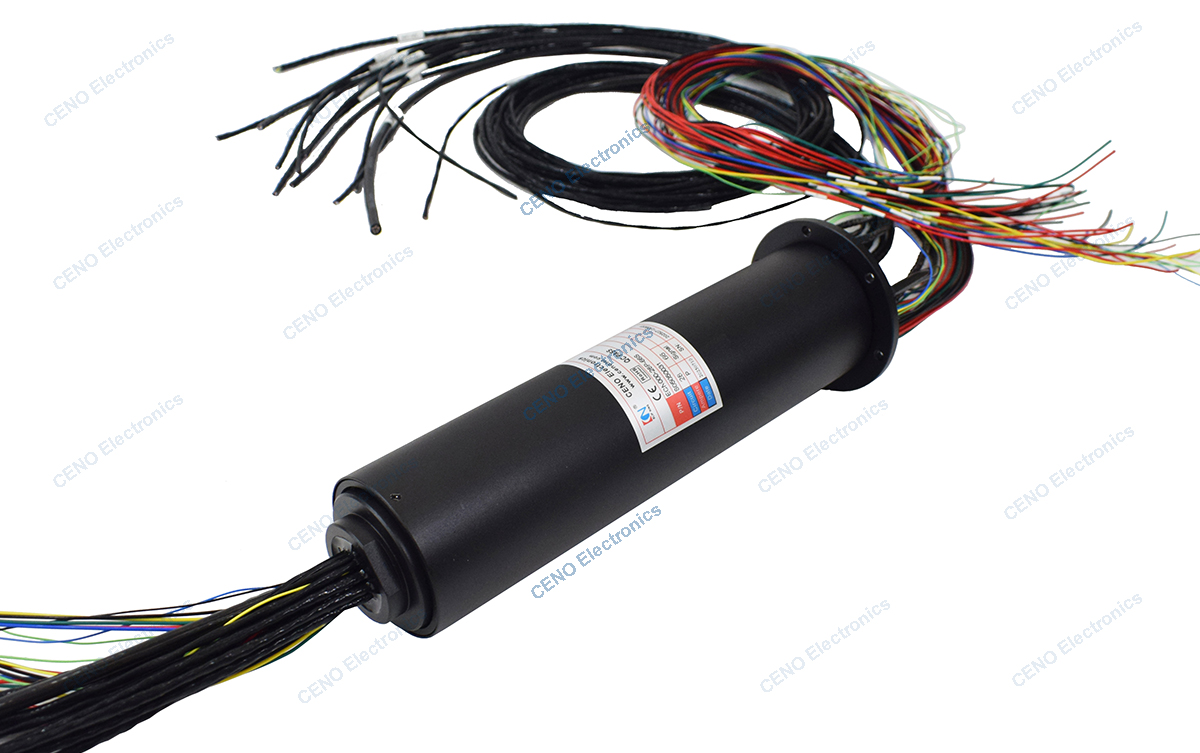

Coaxial Cable Radio Frequency Slip Ring is also called Coaxial rotary joint. Our company high frequency/microwave coaxial rotary joint is used in the 360° continuous rotation devices to transfer DC~50GHz high frequency signals.Application for satellite Antenna, vehicle, radar, Microwave antenna test bench....etc. It can be support single-channel or multi-channels high frequency for transmission, also support 1~2 channel DC~50GHz RF signals, communication, 1~96 circuits power or signals supply, fluid mixing transmission medium. High frequency signal is used by 50Ω impedance of RF coaxial structure. for others connector can be switching, and lead wire RG178,RG316,RG174 available.
RCN03-01WG-02COX | Specification | ||
Channel 1 | Channel 2 | Channel 3 | |
Connector | SMA female | SMA female | UBR120 |
Frequency range | 18GHz | 13GHz | 13.5-14.5GHz |
Peak Power, Max. | 1000W@1GHz | 1000W@1GHz | 20KW |
Insertion loss | 0.7dB@0-4GHz 1.5dB @4-12GHz 2.0dB @12-18GHz | 0.9 dB @0-4GHz 1.6 dB @4-12GHz 2.5 dB @12-18GHz | 0.2 dB |
Insertion loss,WOW,max | 0.1 dB | 0.15 dB | 0.05 dB |
Rotating speed,max | 20rpm | ||
Working temperature | -50℃~-+80℃ | ||
IP protection grade | IP60 EN60529 | ||
| weight | 1.5K | ||
Body material | Aluminum alloy | ||
Outline drawing
