RCN0204C is a Dual-Channel Rotary Joint with connector type SMA-F(50Ω) and Frequency DC-4.5GH from CENO electronics company. It can work stably within the speed of 30rpm at the temperature from -55℃ to +85℃. Most of the parameter is optional as customer request, such as the wave length, connector type, frequency, working speed, protection grade and channels is up to 5. It’s always used on the High definition video equipment, Air traffic control radar, military radar system or electronic warfare system etc.
RCN0204C | Specification | |
Channel | Channel 1 | Channel 2 |
Connector type | SMA-F(50Ω) | SMA-F(50Ω) |
Style type | L | L |
Frequency | DC-4.5GHz | DC-4.5GHz |
Peak Power, max | 1KW | 1KW |
Average Power, max | 100W@DC-2GHz 60W@2GHz-4.5GHz |
10W |
Voltage standing wave ratio, max | 1.2 | 1.5 |
Voltage standing wave ratio floating, max | 0.05 | 0.2 |
Insert loss, max | 0.35dB | 0.5dB |
Insert loss flotation, max | 0.05dB | 0.15dB |
Phrase stability, max | 1deg | 4deg |
Working speed, max | 30 rpm | |
Service life, mix | 5million rounds | |
Starting torque, max | 0.05Nm@ normal temperature | |
Using torque, max | 0.05Nm@ normal temperature | |
Material | Aluminum Alloy | |
Surface treatment | Conductive oxide | |
Weight | 110g | |
Temperature | Working : ﹣40℃ to +70℃ Storage : ﹣55℃ to +85℃ | |
Humidity | 95% | |
IP Grade | IP60 | |

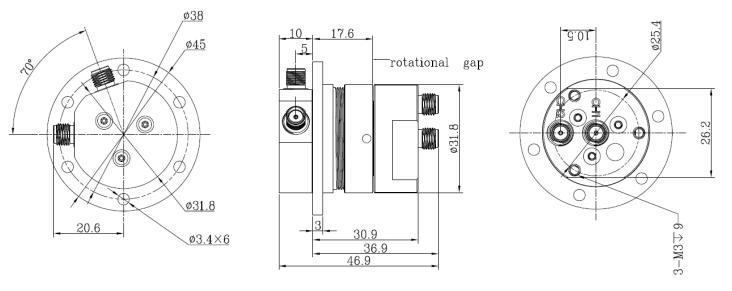

Outline drawing
