ECN155-04S

Big size slip-ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems. The system can be fitted directly to the center of the rotation, to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.

Product Details

ECN155-04S	Specification
Current	4*K type thermocouple signal
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥300V@50Hz
Insulation resistance	≥100MΩ@300VDC
Operating speed	0-100 rpm
Contact material	Aluminum alloy sandblasting oxidation black
Operating temperature	-20~+60℃
Through bore size	155mm
IP protection grade	IP54

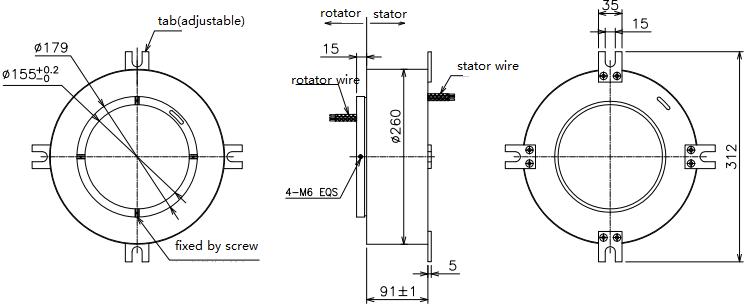

Outline drawing
