ECN038-06P2-12S

Slip rings are used in electromechanical applications for transmitting power, electrical signals and data through a 360° rotating joint from a stationary part to a freely rotating part. Typical use applications are cranes and radars.

Product Details

Specification

ECN038-06P2-12S
Current	610A,122A
Voltage	0~50 VDC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥300V@50Hz(power) ≥100V@50Hz(signal)
Insulation resistance	300MΩ@300VDC(power) 100MΩ@100VDC(signal)
Operating speed	0-100 rpm
Contact material	precious metals
Operating temperature	-40~+55℃
Through bore size	38.1mm
IP protection grade	IP54

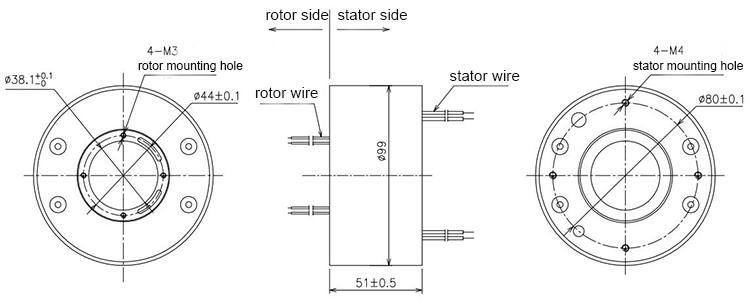

Outline drawing
