ECN050-18P-IP67 Water proof Slip Ring

ECN050-18P-IP67 is CENO function water proof slip ring with through hole and inner diameter Ø50mm, which is designed for the environments high humidity , corrosion, even for the under water. The water proof slip ring can be designed to multiple protection grade as the different working environment as IP65, IP66, IP67 and IP68. It’s often applied to the marine engineering, ships, port and navigation equipment. For more information about how CENO slip ring can fit your specific application, please contact us freely.

Product Details

Specification

ECN050-18P-IP67	Specification
Current & Circuits	6circuits10A; 6circuits20A; 6circuits*30A
Rating Voltage	0~380VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave range	≤30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	≤60%RH
Protection Grade	IP67
Operating speed	0~ 30 rpm
Lead wire size	Flexible rubber hose
Lead wire length	Rotor:500mm; Stator:500mm

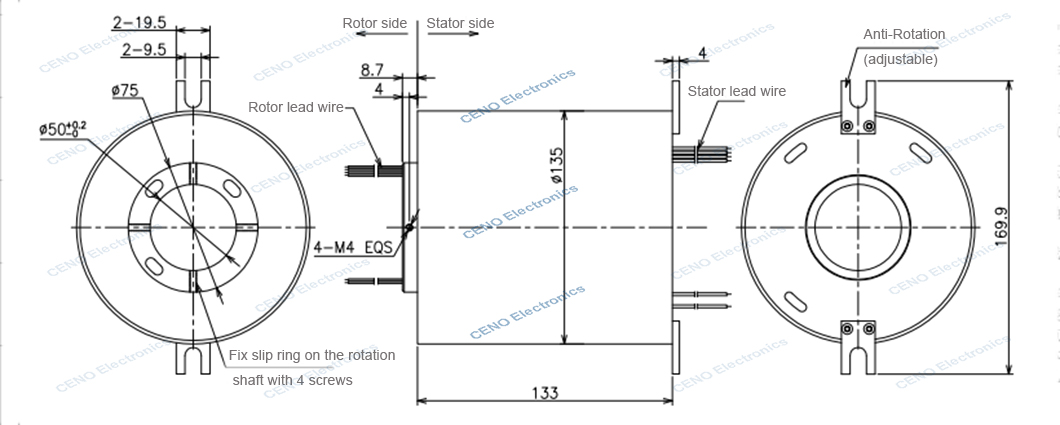

Inner diameter	Ø50mm
External diameter	Ø135mm
Installation	Rotor side fixed on guest main shaft with screws
