Slip rings of the ECN series have the characteristics of precious metal contacts and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges. ECN000-05P2-04S-IP65 is a waterproof slip ring with solid bore, integrated 5 rings of 10A and 1 group of Ether CAT signal, working speed up to 300 rpm.The typical application including food industry, ship offshore equipment, oil drilling etc. CENO can provide different solutions according to customer’s requirement please contact us freely.
ECN000-05P2-04S-IP65 | Specification |
Circuits & Current | 5*10A,1 group *Ether CAT |
Voltage | 0~200 VAC/VDC |
Electrical noise | Max 70mΩ (50rpm) |
Dielectric strength | ≥1000V@50Hz (power) ≥300V@50Hz (signal) |
Isolation resistance | ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
Operating speed | 0-300 rpm |
Contact material | Precious metal |
Housing material | Aluminium alloy black housing |
IP protection grade | IP65 |
Working temperature | -20°C ~ +80°C |

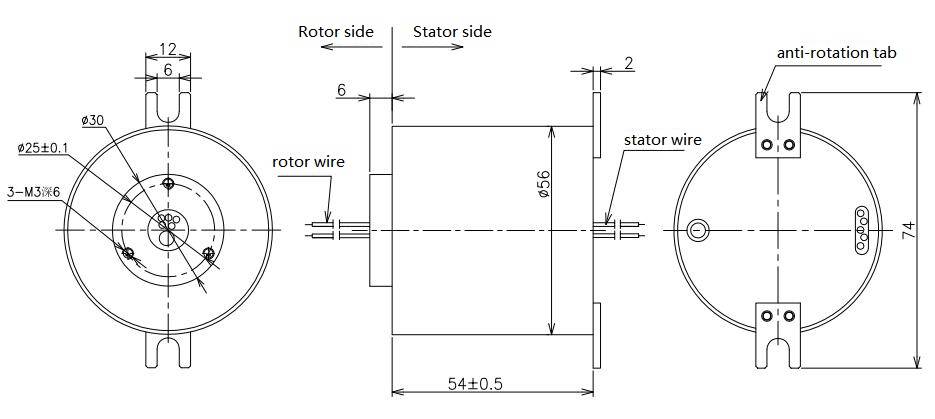

Outline drawing
