ECN000-16P-IP67 is CENO's new design IP67 water proof slip ring for open country or outdoors application. CENO has delivered trusted technology products and services to the land or offshore petroleum, seismic and maritime industries, and we designs and manufactures for about 5000designs in nearly 20 years. CENO Water proof slip ring are designed to function in extreme humidity and harsh wild outdoor environment.For more information about how CENO's water proof slip ring or other function slip ring can fit your specific wording environment, please contact us.
Specification
| ECN000-16P-IP67 | Specification |
|---|---|
Current & Circuits | 5circuits*32A; 11circuit*10A; |
Rating Voltage | 0~380VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz (P) ≥300VAC@50Hz (S) |
Isolation resistance | ≥500MΩ@500VDC (P) ≥100MΩ@300VDC (S) |
Electrical Noise | 30mΩ (50rpm) |
Contact material | Precious Metal |
Housing material | Aluminum Alloy |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP67 |
Operating speed | 0~300rpm |
Lead wire size | AW10# 16 #Wire Teflon® UL |
Lead wire length | Rotor : 3000mm Stator : 3000mm |
External diameter | Ø99mm |

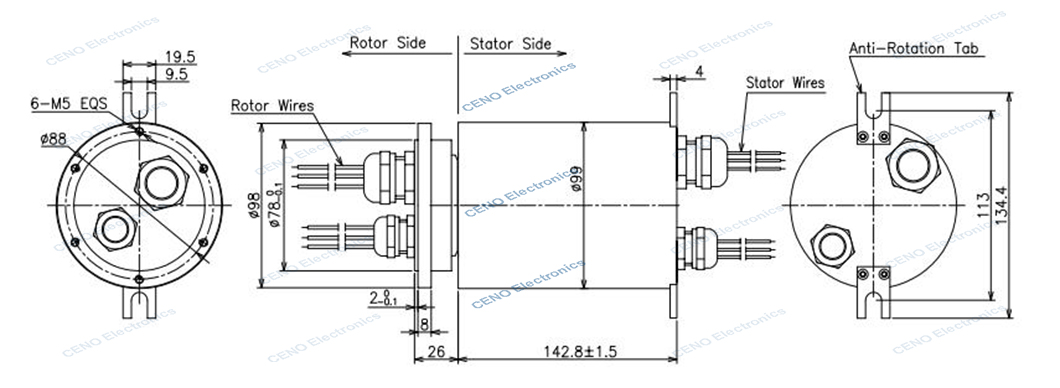

Outline Drawing
